| Lot | A90-0042 |
|---|---|
| Concentration | 1.15 µg/µl |
| Species reactivity | Human, mouse, Xenopus, Arabidopsis, C. elegans, Rice, Tomato, B. napus, Nicotiana benthamiana: positive. Other species: not tested |
| Type | Polyclonal |
| Purity | Affinity purified polyclonal antibody |
| Host | Rabbit |
| Storage Conditions | Store at -20°C; for long storage, store at -80°C. Avoid multiple freeze-thaw cycles. |
| Storage Buffer | PBS containing 0.05% azide and 0.05% ProClin 300 |
| Precautions | This product is for research use only. Not for use in diagnostic or therapeutic procedures. |
| Applications | Suggested dilution | References |
|---|---|---|
| ChIP * | 2 μg/ChIP | Fig 1 |
| ELISA | 1:1,000 | Fig 2 |
| Dot Blotting | 1:20,000 | Fig 3 |
| Western Blotting | 1:1,000 | Fig 4 |
| Immunofluorescence | 1:500 | Fig 5 |
* Please note that the optimal antibody amount per IP should be determined by the end-user. We recommend testing 1-5 µg per IP.

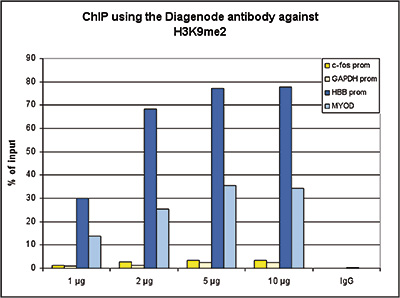

Figure 1. ChIP results obtained with the Diagenode antibody directed against H3K9me2
ChIP assays were performed using human HeLa cells, the Diagenode antibody against H3K9me2 (Cat. No. C15410060) and optimized PCR primer sets for qPCR. ChIP was performed with the “Auto Histone ChIP-seq kit, using sheared chromatin from 1 million cells. A titration of the antibody consisting of 1, 2, 5, and 10 µg per ChIP experiment was analysed. IgG (2 µg/IP) was used as negative IP control. QPCR was performed with primers specific for promoter of the inactive HBB gene and the coding region of the inactive MYOD gene, used as positive controls, and for the promoters of the active genes c-fos and GAPDH, used as negative controls. Figure 1 shows the recovery, expressed as a % of input (the relative amount of immunoprecipitated DNA compared to input DNA after qPCR analysis).

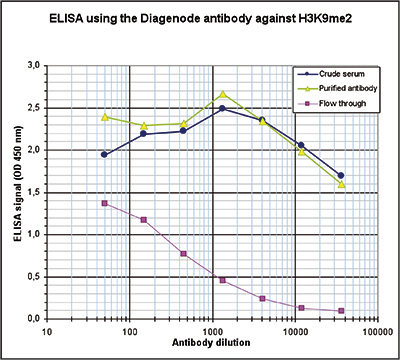

Figure 2. Determination of the antibody titer
To determine the titer of the antibody, an ELISA was performed using a serial dilution of the Diagenode antibody against H3K9me2 (Cat. No. C15410060), crude serum and Flow through. The antigen used was a peptide containing the histone modification of interest. By plotting the absorbance against the antibody dilution (Figure 2), the titer of the antibody was estimated to be 1:103,000.

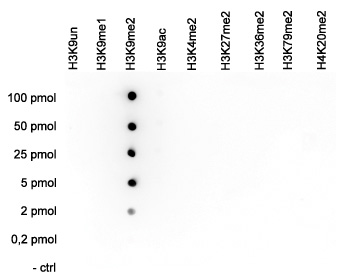

Figure 3. Cross reactivity tests using the Diagenode antibody directed against H3K9me2
A Dot Blot analysis was performed to test the cross reactivity of the Diagenode antibody against H3K9me2 (Cat. No. C15410060) with peptides containing other modifications of histone H3 and the unmodified H3K9 sequence. One hundred to 0.2 pmol of peptide containing the respective histone modification were spotted on a membrane. The antibody was used at a dilution of 1:20,000. Figure 3 shows a high specificity of the antibody for the modification of interest.

Figure 4. Western blot analysis using the Diagenode antibody directed against H3K9me2
Histone extracts (15 µg) from HeLa cells were analysed by Western blot using the Diagenode antibody against H3K9me2 (Cat. No. pAb-060-050) diluted 1:1,000 in TBS-Tween containing 5% skimmed milk. The position of the protein of interest is indicated on the right; the marker (in kDa) is shown on the left.

Figure 5. Immunofluorescence using the Diagenode antibody directed against H3K9me2
Mouse NIH3T3 cells were stained with the Diagenode antibody against H3K9me2 (Cat. No. C15410060) and with DAPI. Cells were fixed with 4% formaldehyde for 10’ and blocked with PBS/TX-100 containing 5% normal goat serum and 1% BSA. The cells were immunofluorescently labeled with the H3K9me2 antibody (left) diluted 1:500 in blocking solution followed by an anti-rabbit antibody conjugated to Alexa488. The middle panel shows staining of the nuclei with DAPI. A merge of the two stainings is shown on the right.
Histones are the main constituents of the protein part of chromosomes of eukaryotic cells. They are rich in the amino acids arginine and lysine and have been greatly conserved during evolution. Histones pack the DNA into tight masses of chromatin. Two core histones of each class H2A, H2B, H3 and H4 assemble and are wrapped by 146 base pairs of DNA to form one octameric nucleosome. Histone tails undergo numerous post-translational modifications, which either directly or indirectly alter chromatin structure to facilitate transcriptional activation or repression or other nuclear processes. In addition to the genetic code, combinations of the different histone modifications reveal the so-called “histone code”. Histone methylation and demethylation is dynamically regulated by respectively histone methyl transferases and histone demethylases. Dimethylation of histone H3K9 is more present in silent genes.
| ELISA Enzyme-linked immunosorbent assay. Read more |
| DB Dot blotting Read more |
| WB Western blot : The quality of antibodies used in this technique is crucial for correct and specific protein identification. Diagenode offers huge selection of highly sensitive and specific western blot-validated antibodies. Learn more about: Load... Read more |
| IF Immunofluorescence: Diagenode offers huge selection of highly sensitive antibodies validated in IF. Immunofluorescence using the Diagenode monoclonal antibody directed against CRISPR/Cas9 HeLa cells transfected with a Cas9 expression vector (... Read more |
| ChIP-qPCR (ab) Read more |
| Datasheet H3K9me2 C15410060 DATASHEET Polyclonal antibody raised in rabbit against the region of histone H3 containing the dimethylated... | Download |
| Epigenetic Antibodies Brochure BROCHURE More than in any other immuoprecipitation assays, quality antibodies are critical tools in many e... | Download |
| Antibodies you can trust POSTER Epigenetic research tools have evolved over time from endpoint PCR to qPCR to the analyses of lar... | Download |
| SDS C15410060 H3K9me2 Antibody GB en | Download |
| SDS C15410060 H3K9me2 Antibody US en | Download |
| SDS C15410060 H3K9me2 Antibody FR fr | Download |
| SDS C15410060 H3K9me2 Antibody BE nl | Download |
| SDS C15410060 H3K9me2 Antibody DE de | Download |
| SDS C15410060 H3K9me2 Antibody JP ja | Download |
| SDS C15410060 H3K9me2 Antibody ES es | Download |
| SDS C15410060 H3K9me2 Antibody BE fr | Download |
How to properly cite our product/service in your workWe strongly recommend using this: H3K9me2 Antibody (Hologic Diagenode Cat# C15410060 Lot# A90-0042). Click here to copy to clipboard. Using our products or services in your publication? Let us know! |
