JMJD2a Antibody

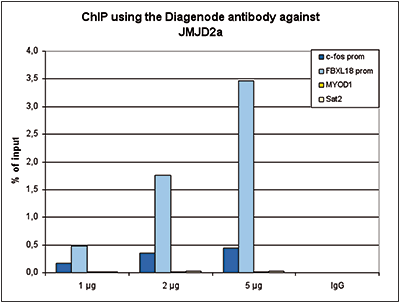

Figure 1. ChIP results obtained with the Diagenode antibody directed against JMJD2a
ChIP assays were performed using K562 cells, the Diagenode antibody against JMJD2a (Cat. No. C15410332) and optimized PCR primer sets for qPCR. ChIP was performed with the “iDeal ChIP-seq” kit (Cat. No. C01010055), using sheared chromatin from 4 million cells. A titration consisting of 1, 2 and 5 μg of antibody per ChIP experiment was analyzed. IgG (2 μg/IP) was used as a negative IP control. Quantitative PCR was performed with optimized primers for the promoters of the c-fos and FBXL18 genes, used as positive controls, and for the MYOD1 gene and the Sat2 satellite repeat, used as negative controls. Figure 1 shows the recovery, expressed as a % of input (the relative amount of immunoprecipitated DNA compared to input DNA after qPCR analysis).

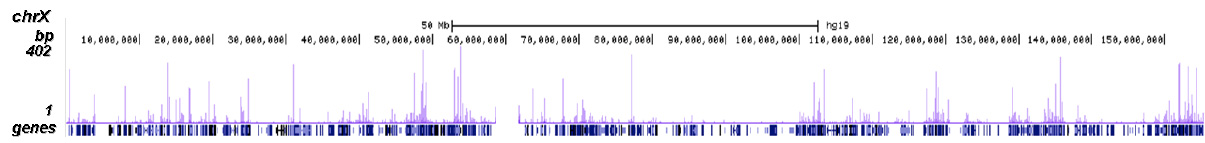

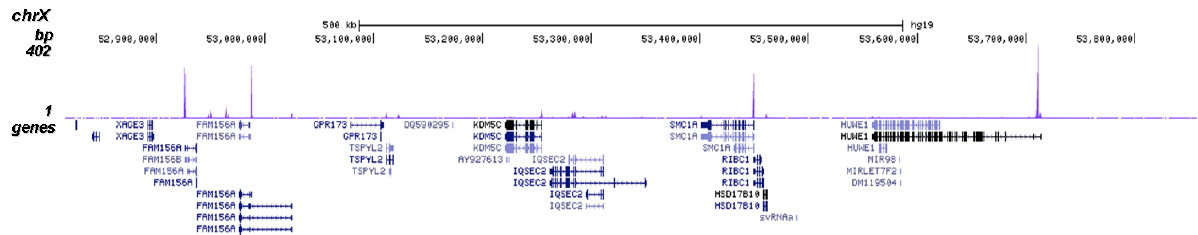

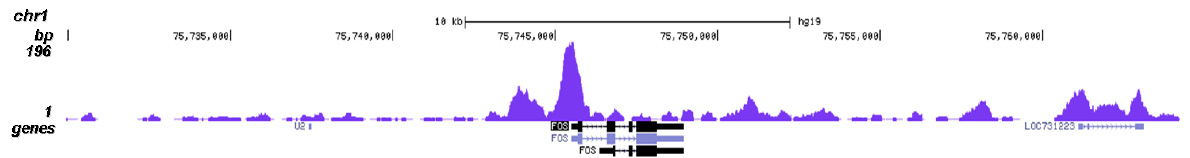

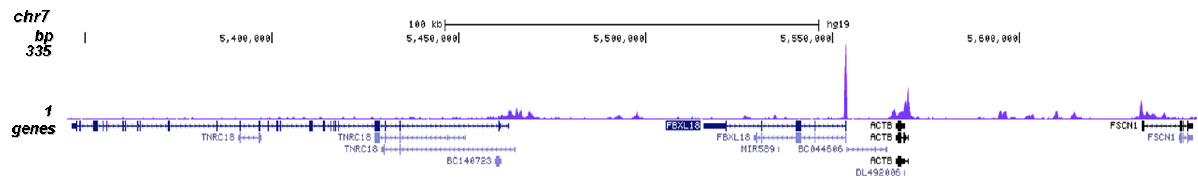

Figure 2. ChIP-seq results obtained with the Diagenode antibody directed against JMJD2a
ChIP assays were performed using K562 cells, the Diagenode antibody against JMJD2a (Cat. No. C15410332) and optimized PCR primer sets for qPCR. ChIP was performed with the “iDeal ChIP-seq” kit (Cat. No. C01010055), using sheared chromatin from 4 million cells. A titration consisting of 1, 2 and 5 μg of antibody per ChIP experiment was analyzed. IgG (2 μg/IP) was used as a negative IP control. Quantitative PCR was performed with optimized primers for the promoters of the c-fos and FBXL18 genes, used as positive controls, and for the MYOD1 gene and the Sat2 satellite repeat, used as negative controls. Figure 1 shows the recovery, expressed as a % of input (the relative amount of immunoprecipitated DNA compared to input DNA after qPCR analysis).

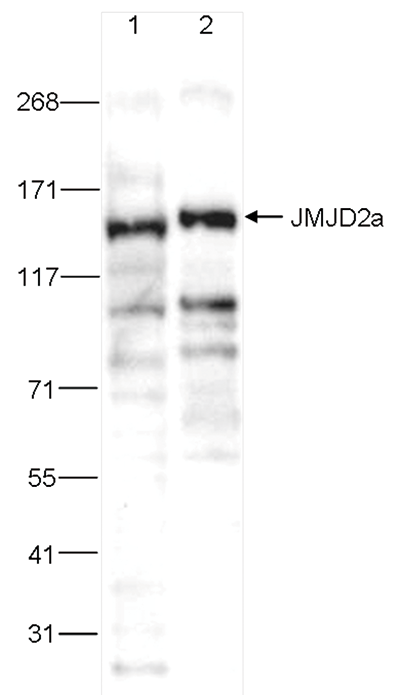

Figure 3. Western blot analysis using the Diagenode antibody directed against JMJD2a
Whole cell extracts from HeLa (lane 1) and mouse NIH3T3 cells (lane 2) were analysed by Western blot using the Diagenode antibody against JMJD2a (Cat. No. C15410332) diluted 1:500 in TBS-Tween containing 5% skimmed milk. The position of the protein of interest is indicated on the right; the marker (in kDa) is shown on the left.

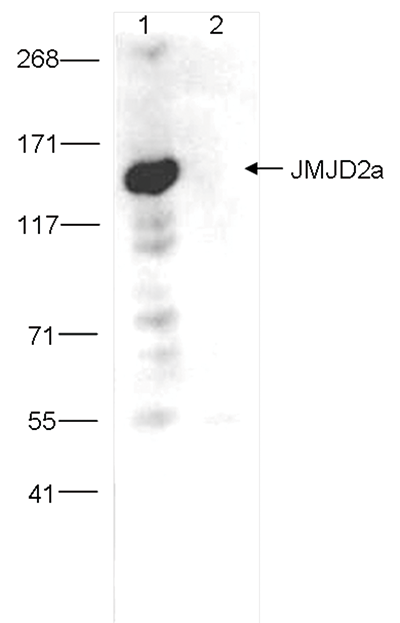

Figure 4. Immunoprecipitation analysis using the Diagenode antibody directed against JMJD2a
Immunoprecipitation was performed on whole cell extracts from HeLa cells using 3 μg of the Diagenode antibody against JMJD2a (Cat. No. C15410332, lane 1). An equal amount of rabbit IgG was used as a negative control (lane 2). The immunoprecipitated JMJD2a protein was detected by western blot with the JMJD2a antibody diluted 1:200.
