PHF8 Antibody

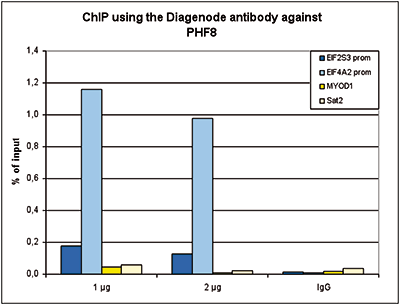

Figure 1. ChIP results obtained with the Diagenode antibody directed against PHF8
ChIP assays were performed using HeLa cells, the Diagenode antibody against PHF8 (cat. No. C15410336) and optimized PCR primer sets for qPCR. ChIP was performed with the “iDeal ChIP-seq” kit (Cat. No. C01010055), using sheared chromatin from 4 million cells. A titration consisting of 1 and 2 μg of antibody per ChIP experiment was analyzed. IgG (2 μg/IP) was used as a negative IP control. Quantitative PCR was performed with primers for the promoters of the EIF2S3 and EIF4A2 genes, used as positive controls, and for the MYOD1 gene and the Sat2 satellite repeat, used as negative controls. Figure 1 shows the recovery, expressed as a % of input (the relative amount of immunoprecipitated DNA compared to input DNA after qPCR analysis).

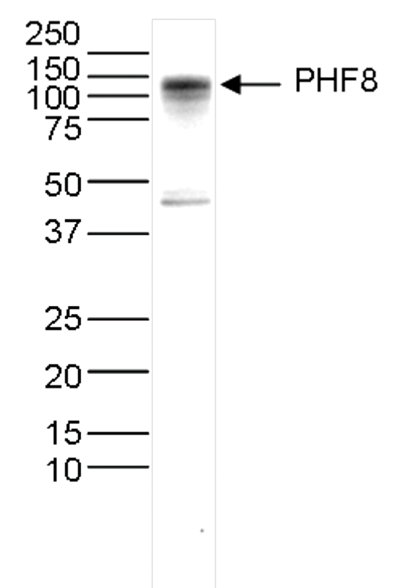

Figure 2. Western blot analysis using the Diagenode antibody directed against PHF8
Whole cell extracts from HeLa cells were analysed by Western blot using the Diagenode antibody against PHF8 (Cat. No. C15410336) diluted 1:1,000 in TBS-Tween containing 5% skimmed milk. The position of the protein of interest is indicated on the right; the marker (in kDa) is shown on the left.

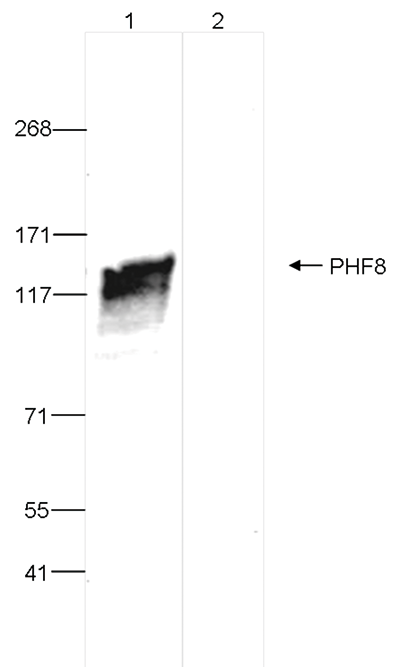

Figure 3. Immunoprecipitation analysis using the Diagenode antibody directed against PHF8
Immunoprecipitation was performed on whole cell extracts from HeLa cells using 6 μg of the Diagenode antibody against PHF8 (Cat. No. C15410336, lane 1). An equal amount of rabbit IgG was used as a negative control (lane 2). The immunoprecipitated PHF8 protein was detected by western blot with the PHF8 antibody diluted 1:500.
